PXI/PXIe 5A Battery Simulator for BMS Testing
High-Current, Scalable, and Safe BMS HIL Testing

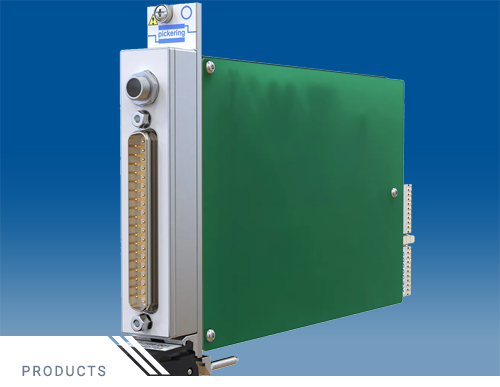

This video introduces our next-generation 5A Battery Simulator family, available in both PXI (41-754) and PXIe (43-754), designed for validating Battery Management Systems (BMS) and testing battery-powered devices. Discover how these modules, delivering up to 8V and 5A per channel, can replace and emulate a battery stack for battery management testing in demanding applications like Electric Vehicles (EVs), grid-scale energy storage, and eVTOL aircraft. The content highlights the simulator's ability to both source and sink current, ensuring realistic charge and discharge emulation. With high channel-to-ground isolation and a compact, modular PXI form factor, these simulators offer a scalable, safe, and cost-effective solution for creating future-ready Hardware-in-the-Loop (HIL) test systems.
- High-Current Emulation: Up to 5A per channel to simulate realistic charging and discharging conditions.
- Scalable Architecture: Isolated channels enable series connections for safely emulating high-voltage battery stacks.
- Compact & Modular: PXI form factor allows flexible integration into existing test systems, saving space and cost.
- Enhanced Safety: Simulate fault conditions without the risks associated with handling real batteries.
- Test Strategy Optimization: Complements our existing PXI 300 mA battery cell simulators for efficient, cost-effective hybrid test strategies.
