In Part 1 of the series, our experts covered the tactics required to design a well-defined communication framework. Now Part 2 will cover what your team must understand for deployment. The article outlines things to consider such as:

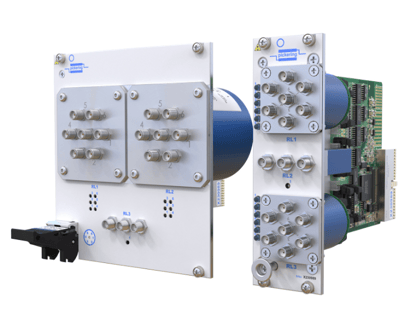

New Flexible PXI & PXIe Microwave Switching Family
This month, we released our NEW family of modular, flexible PXI & PXIe microwave switches, bringing highly configurable RF switching solutions up to 110GHz at 50Ω impedance or up to 2.5 GHz at 75Ω impedance and a range of connector types to the PXI platform, delivering flexibility, versatility, and test system optimization.
These modules allow you to select from and combine a wide range of high-performance microwave relay types to suit your exact application requirements while minimizing chassis slot usage by combining multiple relay and connector types on a single module. Try our Microwave Switch Design Tool to configure your own.
The 4x-890 family is ideal for test environments requiring high-frequency microwave switching, from radar, satellite, and short-range land-based secure communications to consumer electronics and 5G infrastructure.
Features Include:
Available relays include Transfer, SPDT, SP4T, SP6T, SP8T, SP10T and SP12T in unterminated and terminated versions
Watch our new Presentation on Modular test – PXI as a Standard versus Proprietary Modular Systems, sponsored by the PXI Systems Alliance (PXISA) and Pickering Interfaces. In this short presentation, we categorize the distinctions between a modular standard and a proprietary modular system for functional test, as well as highlight the differences between PXI, PXIe and LXI as test platforms.
Take a look at the video below.
Meet Us At Our Upcoming Shows
Join us at the Aerospace Test and Development Show in Toulouse from 19-20 September. We will be in Stand# 633 showcasing our products designed for aerospace applications including General Purpose switching, Fault Insertion for Hardware-in-the-Loop simulation RF/Microwave switching up to 110GHz, and more.
We will be attending European Microwave Week (EuMW) in Berlin from the 17th - 22nd September. Visit us In Booth 605B, where we will be showcasing our MEMS-based RF PXI/PXIe multiplexer family delivering vastly increased operational life (up to 300x) along with our newest RF and Microwave Switching solutions.
Have questions about our modular switching and sensor simulation solutions? Contact us or just reply to this email, and we would be happy to answer them.
